    Features
  • 15-ton pulling capacity
  • 48” stroke
  • 20 hp., 3-phase 230/460 V hydraulic system
  • 2”diameter round-type guide ways
  • Automatic broach handling
  • พ hp. coolant system
  •  Two button anti-tie down control
  • 18” infra-red light curtain safety system
  • Programmable controls
  • 60” load height approx. (no floor pit)
  • 246” overall height approx. (no floor pit)
  • 34” load height (approx.) pitted
  • 195” overall height (approx.) pitted
  • 60” ื 60” footprint (approx.)
  • Approx. cycle time: 15 seconds

    Typical Applications

  • High tonnage internal cuts
  • Automatic broach handling for semi-automatic or fully automatic cycling

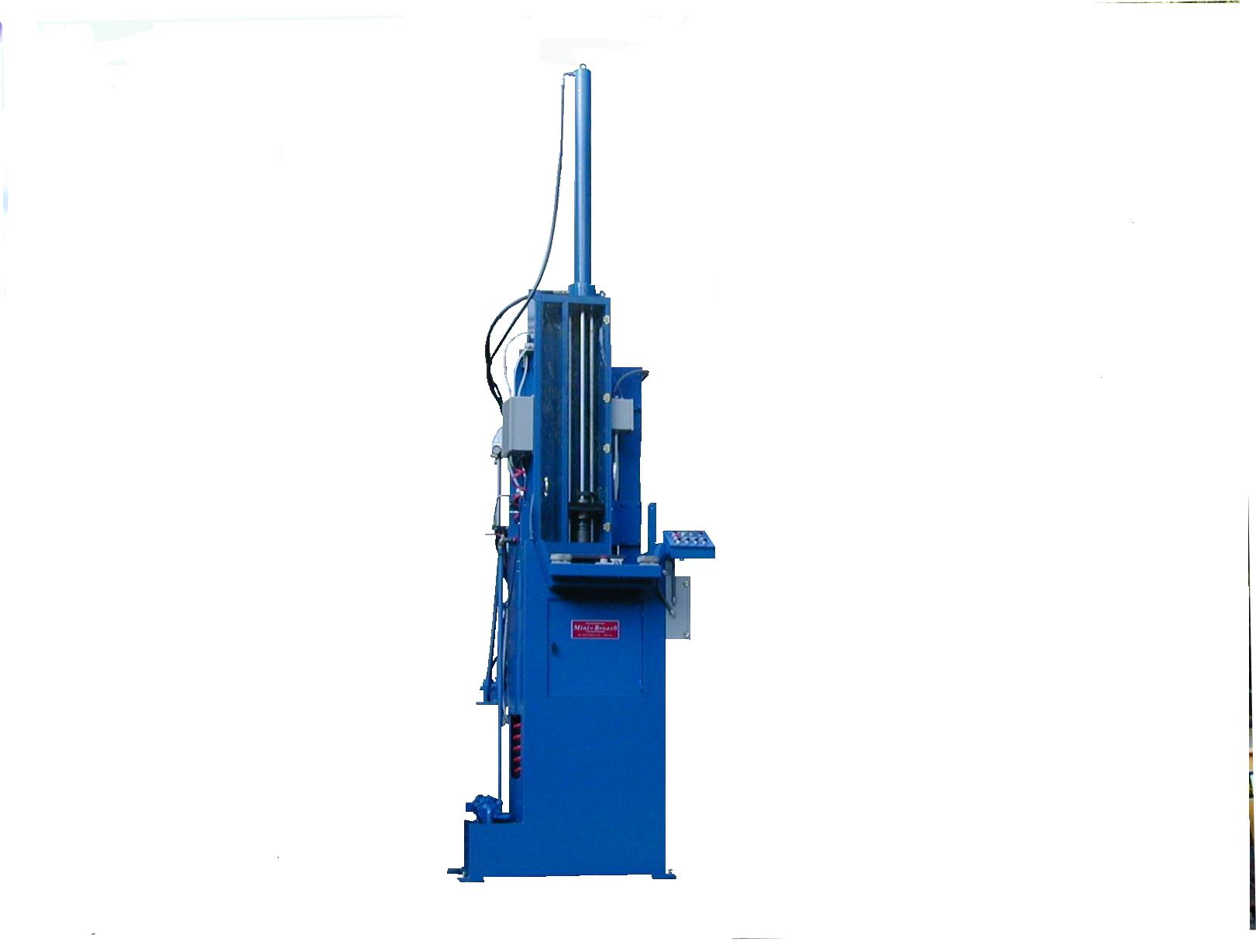

Model 15UV48
Click here for a larger view

    Optional Equipment

  • Work piece shuttle loader
  • Automatic power clamping system
