    Features
  • 2 ฝ ton capacity
  • 28” stroke
  • 0-65 fpm broaching speed
  • Fixed 50 fpm return speed
  • Pressure compensated hydraulic system
  • Three point guiding system
  • PLC controlled
  • 40 gallon capacity hydraulic system
  • ⅛ hp. coolant system
  • Dual palm button control
  • 18” ื 90” footprint 54” tall
  • Auto pull head capable


    Typical Applications

  • mbm, mbr, mb, ms, mr, m, mw  series – one pass  keyway pull broaches
  •  Splines to approximate พ”
  • Hexes to ⅞”
  • Squares to พ”
  • Manual and semi-automated surface and straddle cuts
  • Smaller series blind hexes, Torxฎ, D and DD shapes
  • Broach follower applications

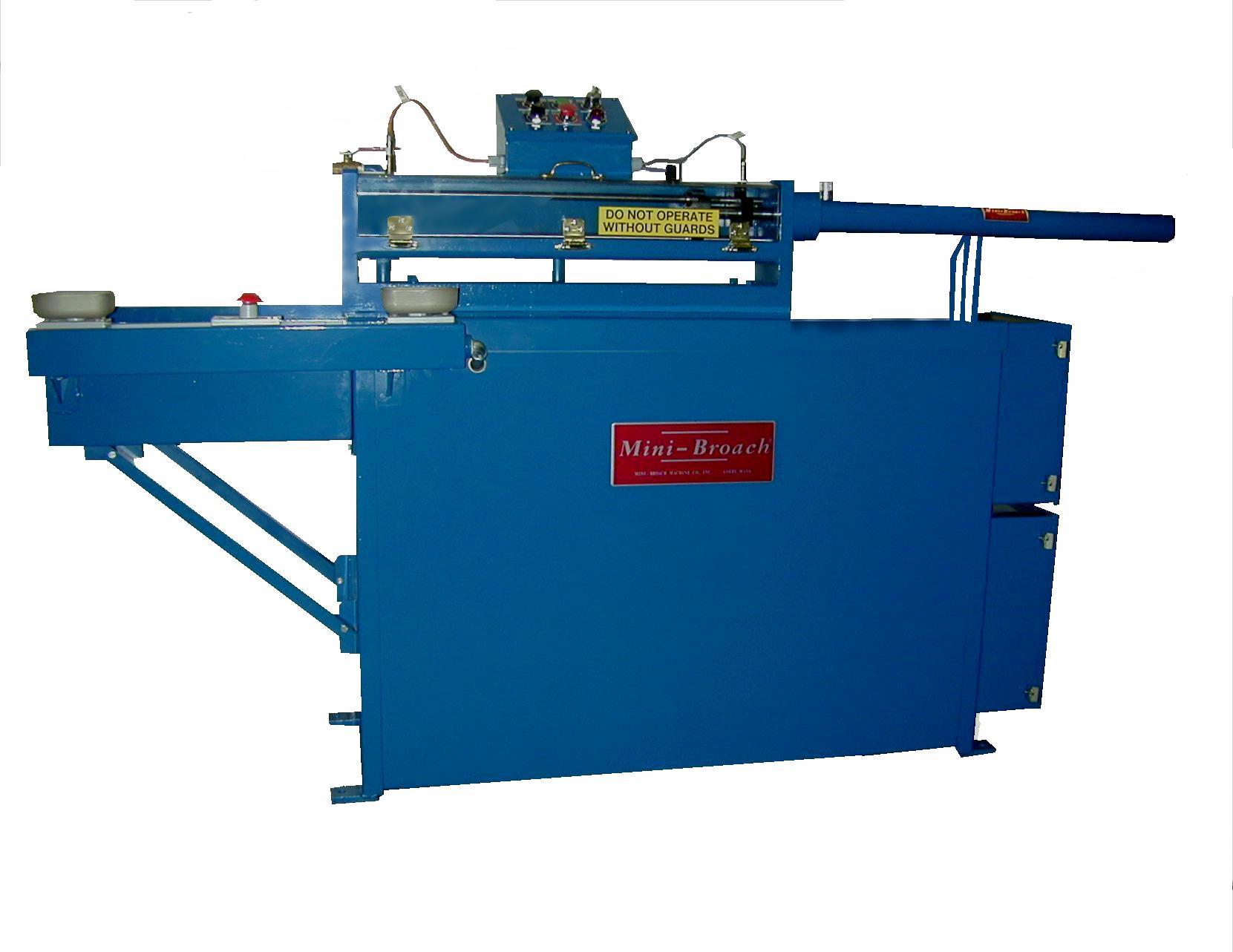

Model 3A

Click here for a larger view

    Optional Equipment

  • Automatic power clamp system
  • Infra-red light curtain safety system
  • Casters with wheel locks
  • 36" stroke
  • 10 hp. hydraulic system
  • 1700 lb shipping weight (approx.)
  • Broach follower system
